CLOCK — Clock control

The clock control system can source the system clocks from a range of internal or external high and low frequency oscillators and distribute them to modules based upon a module’s individual requirements. Clock distribution is automated and grouped independently by module to limit current consumption in unused branches of the clock tree.

Listed here are the main features for CLOCK:

64 MHz on-chip oscillator
64 MHz crystal oscillator, using external 32 MHz crystal
32.768 kHz +/-500 ppm RC oscillator
32.768 kHz crystal oscillator, using external 32.768 kHz crystal
32.768 kHz oscillator synthesized from 64 MHz oscillator
Firmware (FW) override control of oscillator activity for low latency start up
Automatic oscillator and clock control, and distribution for ultra-low power

Figure 1. Clock control

HFCLK clock controller

The HFCLK clock controller provides the following clocks to the system.

HCLK64M: 64 MHz CPU clock
PCLK1M: 1 MHz peripheral clock
PCLK16M: 16 MHz peripheral clock
PCLK32M: 32 MHz peripheral clock

The HFCLK controller supports the following high frequency clock (HFCLK) sources:

64 MHz internal oscillator (HFINT)
64 MHz crystal oscillator (HFXO)

For illustration, see Clock control.

When the system requests one or more clocks from the HFCLK controller, the HFCLK controller will automatically provide them. If the system does not request any clocks provided by the HFCLK controller, the controller will enter a power saving mode.

These clocks are only available when the system is in ON mode. When the system enters ON mode, the internal oscillator (HFINT) clock source will automatically start to be able to provide the required HFCLK clock(s) for the system.

The HFINT will be used when HFCLK is requested and HFXO has not been started. The HFXO is started by triggering the HFCLKSTART task and stopped using the HFCLKSTOP task. A HFCLKSTARTED event will be generated when the HFXO has started and its frequency is stable.

The HFXO must be running to use the RADIO or the calibration mechanism associated with the 32.768 kHz RC oscillator.

64 MHz crystal oscillator (HFXO)

The 64 MHz crystal oscillator (HFXO) is controlled by a 32 MHz external crystal

The crystal oscillator is designed for use with an AT-cut quartz crystal in parallel resonant mode. To achieve correct oscillation frequency, the load capacitance must match the specification in the crystal data sheet.

Circuit diagram of the 64 MHz crystal oscillator shows how the 32 MHz crystal is connected to the 64 MHz crystal oscillator.

Figure 2. Circuit diagram of the 64 MHz crystal oscillator

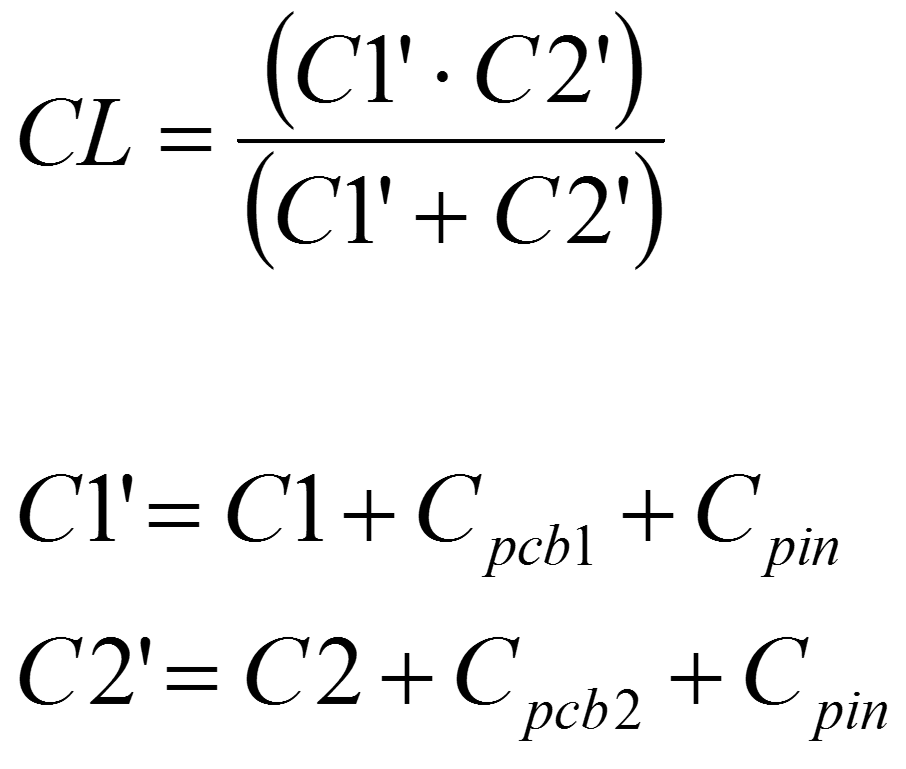

The load capacitance (CL) is the total capacitance seen by the crystal across its terminals and is given by:

C1 and C2 are ceramic SMD capacitors connected between each crystal terminal and ground. For more information, see Reference circuitry. C_pcb1 and C_pcb2 are stray capacitances on the PCB. C_pin is the pin input capacitance on the XC1 and XC2 pins. See table 64 MHz crystal oscillator (HFXO). The load capacitors C1 and C2 should have the same value.

For reliable operation, the crystal load capacitance, shunt capacitance, equivalent series resistance, and drive level must comply with the specifications in table 64 MHz crystal oscillator (HFXO). It is recommended to use a crystal with lower than maximum load capacitance and/or shunt capacitance. A low load capacitance will reduce both start up time and current consumption.

LFCLK clock controller

The system supports several low frequency clock sources.

As illustrated in Clock control, the system supports the following low frequency clock sources:

32.768 kHz RC oscillator (LFRC)
32.768 kHz crystal oscillator (LFXO)
32.768 kHz synthesized from HFCLK (LFSYNT)

The LFCLK clock is started by first selecting the preferred clock source in register LFCLKSRC and then triggering the LFCLKSTART task. If the LFXO is selected as the clock source, the LFCLK will initially start running from the 32.768 kHz LFRC while the LFXO is starting up and automatically switch to using the LFXO once this oscillator is running. The LFCLKSTARTED event will be generated when the LFXO has been started.

The LFCLK clock is stopped by triggering the LFCLKSTOP task.

It is not allowed to write to register LFCLKSRC when the LFCLK is running.

A LFCLKSTOP task will stop the LFCLK oscillator. However, the LFCLKSTOP task can only be triggered after the STATE field in register LFCLKSTAT indicates a 'LFCLK running' state.

The LFCLK clock controller and all of the LFCLK clock sources are always switched off when in OFF mode.

32.768 kHz RC oscillator (LFRC)

The default source of the low frequency clock (LFCLK) is the 32.768 kHz RC oscillator (LFRC).

The LFRC frequency will be affected by variation in temperature. The LFRC oscillator can be calibrated to improve accuracy by using the HFXO as a reference oscillator during calibration. See Table 32.768 kHz RC oscillator (LFRC) for details on the default and calibrated accuracy of the LFRC oscillator. The LFRC oscillator does not require additional external components.

Calibrating the 32.768 kHz RC oscillator

After the 32.768 kHz RC oscillator is started and running, it can be calibrated by triggering the CAL task. In this case, the HFCLK will be temporarily switched on and used as a reference.

A DONE event will be generated when calibration has finished. The calibration mechanism will only work as long as HFCLK is generated from the HFCLK crystal oscillator, it is therefore necessary to explicitly start this crystal oscillator before calibration can be started, see HFCLKSTART task.

It is not allowed to stop the LFRC during an ongoing calibration.

Calibration timer

The calibration timer can be used to time the calibration interval of the 32.768 kHz RC oscillator.

The calibration timer is started by triggering the CTSTART task and stopped by triggering the CTSTOP task. The calibration timer will always start counting down from the value specified in CTIV and generate a CTTO timeout event when it reaches 0. The Calibration timer will stop by itself when it reaches 0.

Figure 3. Calibration timer

Due to limitations in the calibration timer, only one task related to calibration, that is, CAL, CTSTART and CTSTOP, can be triggered for every period of LFCLK.

32.768 kHz crystal oscillator (LFXO)

For higher LFCLK accuracy the low frequency crystal oscillator (LFXO) must be used.

The following external clock sources are supported:

Low swing clock signal applied to the XL1 pin. The XL2 pin shall then be grounded.
Rail-to-rail clock signal applied to the XL1 pin. The XL2 pin shall then be grounded or left unconnected.

The LFCLKSRC register controls the clock source, and its allowed swing. The truth table for various situations is as follows:

Table 1. LFCLKSRC configuration depending on clock source
SRC	EXTERNAL	BYPASS	Comment
0	0	0	Normal operation, RC is source
0	0	1	DO NOT USE
0	1	X	DO NOT USE
1	0	0	Normal XTAL operation
1	1	0	Apply external low swing signal to XL1, ground XL2
1	1	1	Apply external full swing signal to XL1, leave XL2 grounded or unconnected
1	0	1	DO NOT USE
2	0	0	Normal operation, synth is source
2	0	1	DO NOT USE
2	1	X	DO NOT USE

To achieve correct oscillation frequency, the load capacitance must match the specification in the crystal data sheet. Circuit diagram of the 32.768 kHz crystal oscillator shows the LFXO circuitry.

Figure 4. Circuit diagram of the 32.768 kHz crystal oscillator

The load capacitance (CL) is the total capacitance seen by the crystal across its terminals and is given by:

C1 and C2 are ceramic SMD capacitors connected between each crystal terminal and ground. C_pcb1 and C_pcb2 are stray capacitances on the PCB. C_pin is the pin input capacitance on the XC1 and XC2 pins (see 32.768 kHz crystal oscillator (LFXO)). The load capacitors C1 and C2 should have the same value.

For more information, see Reference circuitry.

32.768 kHz synthesized from HFCLK (LFSYNT)

LFCLK can also be synthesized from the HFCLK clock source. The accuracy of LFCLK will then be the accuracy of the HFCLK.

Using the LFSYNT clock avoids the requirement for a 32.768 kHz crystal, but increases average power consumption as the HFCLK will need to be requested in the system.

Registers

Table 2. Instances
Base address	Peripheral	Instance	Description	Configuration
0x40000000	CLOCK	CLOCK	Clock control

Table 3. Register overview
Register	Offset	Description
TASKS_HFCLKSTART	0x000	Start HFCLK crystal oscillator
TASKS_HFCLKSTOP	0x004	Stop HFCLK crystal oscillator
TASKS_LFCLKSTART	0x008	Start LFCLK source
TASKS_LFCLKSTOP	0x00C	Stop LFCLK source
TASKS_CAL	0x010	Start calibration of LFRC oscillator
TASKS_CTSTART	0x014	Start calibration timer
TASKS_CTSTOP	0x018	Stop calibration timer
EVENTS_HFCLKSTARTED	0x100	HFCLK oscillator started
EVENTS_LFCLKSTARTED	0x104	LFCLK started
EVENTS_DONE	0x10C	Calibration of LFCLK RC oscillator complete event
EVENTS_CTTO	0x110	Calibration timer timeout
INTENSET	0x304	Enable interrupt
INTENCLR	0x308	Disable interrupt
HFCLKRUN	0x408	Status indicating that HFCLKSTART task has been triggered
HFCLKSTAT	0x40C	HFCLK status
LFCLKRUN	0x414	Status indicating that LFCLKSTART task has been triggered
LFCLKSTAT	0x418	LFCLK status
LFCLKSRCCOPY	0x41C	Copy of LFCLKSRC register, set when LFCLKSTART task was triggered
LFCLKSRC	0x518	Clock source for the LFCLK
CTIV	0x538	Calibration timer interval	Retained

TASKS_HFCLKSTART

Address offset: 0x000

Start HFCLK crystal oscillator

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	W	TASKS_HFCLKSTART										Start HFCLK crystal oscillator
			Trigger	1								Trigger task

TASKS_HFCLKSTOP

Address offset: 0x004

Stop HFCLK crystal oscillator

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	W	TASKS_HFCLKSTOP										Stop HFCLK crystal oscillator
			Trigger	1								Trigger task

TASKS_LFCLKSTART

Address offset: 0x008

Start LFCLK source

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	W	TASKS_LFCLKSTART										Start LFCLK source
			Trigger	1								Trigger task

TASKS_LFCLKSTOP

Address offset: 0x00C

Stop LFCLK source

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	W	TASKS_LFCLKSTOP										Stop LFCLK source
			Trigger	1								Trigger task

TASKS_CAL

Address offset: 0x010

Start calibration of LFRC oscillator

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	W	TASKS_CAL										Start calibration of LFRC oscillator
			Trigger	1								Trigger task

TASKS_CTSTART

Address offset: 0x014

Start calibration timer

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	W	TASKS_CTSTART										Start calibration timer
			Trigger	1								Trigger task

TASKS_CTSTOP

Address offset: 0x018

Stop calibration timer

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	W	TASKS_CTSTOP										Stop calibration timer
			Trigger	1								Trigger task

EVENTS_HFCLKSTARTED

Address offset: 0x100

HFCLK oscillator started

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	RW	EVENTS_HFCLKSTARTED										HFCLK oscillator started
			NotGenerated	0								Event not generated
			Generated	1								Event generated

EVENTS_LFCLKSTARTED

Address offset: 0x104

LFCLK started

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	RW	EVENTS_LFCLKSTARTED										LFCLK started
			NotGenerated	0								Event not generated
			Generated	1								Event generated

EVENTS_DONE

Address offset: 0x10C

Calibration of LFCLK RC oscillator complete event

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	RW	EVENTS_DONE										Calibration of LFCLK RC oscillator complete event
			NotGenerated	0								Event not generated
			Generated	1								Event generated

EVENTS_CTTO

Address offset: 0x110

Calibration timer timeout

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	RW	EVENTS_CTTO										Calibration timer timeout
			NotGenerated	0								Event not generated
			Generated	1								Event generated

INTENSET

Address offset: 0x304

Enable interrupt

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																															D	C		B	A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	RW	HFCLKSTARTED										Write '1' to enable interrupt for event HFCLKSTARTED
			Set	1								Enable
			Disabled	0								Read: Disabled
			Enabled	1								Read: Enabled
B	RW	LFCLKSTARTED										Write '1' to enable interrupt for event LFCLKSTARTED
			Set	1								Enable
			Disabled	0								Read: Disabled
			Enabled	1								Read: Enabled
C	RW	DONE										Write '1' to enable interrupt for event DONE
			Set	1								Enable
			Disabled	0								Read: Disabled
			Enabled	1								Read: Enabled
D	RW	CTTO										Write '1' to enable interrupt for event CTTO
			Set	1								Enable
			Disabled	0								Read: Disabled
			Enabled	1								Read: Enabled

INTENCLR

Address offset: 0x308

Disable interrupt

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																															D	C		B	A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	RW	HFCLKSTARTED										Write '1' to disable interrupt for event HFCLKSTARTED
			Clear	1								Disable
			Disabled	0								Read: Disabled
			Enabled	1								Read: Enabled
B	RW	LFCLKSTARTED										Write '1' to disable interrupt for event LFCLKSTARTED
			Clear	1								Disable
			Disabled	0								Read: Disabled
			Enabled	1								Read: Enabled
C	RW	DONE										Write '1' to disable interrupt for event DONE
			Clear	1								Disable
			Disabled	0								Read: Disabled
			Enabled	1								Read: Enabled
D	RW	CTTO										Write '1' to disable interrupt for event CTTO
			Clear	1								Disable
			Disabled	0								Read: Disabled
			Enabled	1								Read: Enabled

HFCLKRUN

Address offset: 0x408

Status indicating that HFCLKSTART task has been triggered

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	R	STATUS										HFCLKSTART task triggered or not
			NotTriggered	0								Task not triggered
			Triggered	1								Task triggered

HFCLKSTAT

Address offset: 0x40C

HFCLK status

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																			B																A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	R	SRC										Source of HFCLK
			RC	0								64 MHz internal oscillator (HFINT)
			Xtal	1								64 MHz crystal oscillator (HFXO)
B	R	STATE										HFCLK state
			NotRunning	0								HFCLK not running
			Running	1								HFCLK running

LFCLKRUN

Address offset: 0x414

Status indicating that LFCLKSTART task has been triggered

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																			A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	R	STATUS										LFCLKSTART task triggered or not
			NotTriggered	0								Task not triggered
			Triggered	1								Task triggered

LFCLKSTAT

Address offset: 0x418

LFCLK status

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																			B															A	A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	R	SRC										Source of LFCLK
			RC	0								32.768 kHz RC oscillator
			Xtal	1								32.768 kHz crystal oscillator
			Synth	2								32.768 kHz synthesized from HFCLK
B	R	STATE										LFCLK state
			NotRunning	0								LFCLK not running
			Running	1								LFCLK running

LFCLKSRCCOPY

Address offset: 0x41C

Copy of LFCLKSRC register, set when LFCLKSTART task was triggered

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																																		A	A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	R	SRC										Clock source
			RC	0								32.768 kHz RC oscillator
			Xtal	1								32.768 kHz crystal oscillator
			Synth	2								32.768 kHz synthesized from HFCLK

LFCLKSRC

Address offset: 0x518

Clock source for the LFCLK

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																		C	B															A	A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	RW	SRC										Clock source
			RC	0								32.768 kHz RC oscillator
			Xtal	1								32.768 kHz crystal oscillator
			Synth	2								32.768 kHz synthesized from HFCLK
B	RW	BYPASS										Enable or disable bypass of LFCLK crystal oscillator with external clock source
			Disabled	0								Disable (use with Xtal or low-swing external source)
			Enabled	1								Enable (use with rail-to-rail external source)
C	RW	EXTERNAL										Enable or disable external source for LFCLK
			Disabled	0								Disable external source (use with Xtal)
			Enabled	1								Enable use of external source instead of Xtal (SRC needs to be set to Xtal)

CTIV ( Retained )

Address offset: 0x538

This register is a retained register

Calibration timer interval

Bit number				31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ID																													A	A	A	A	A	A	A
Reset 0x00000000				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
ID	Access	Field	Value ID	Value								Description
A	RW	CTIV										Calibration timer interval in multiple of 0.25 seconds. Range: 0.25 seconds to 31.75 seconds.

Electrical specification

64 MHz internal oscillator (HFINT)

Symbol	Description	Typ.	Max.	Units
f_{NOM_HFINT}	Nominal output frequency	64		MHz
f_{TOL_HFINT}	Frequency tolerance	<±1.5	<±8	%
t_{START_HFINT}	Startup time	3		us

64 MHz crystal oscillator (HFXO)

Symbol	Description	Typ.	Max.	Units
f_{NOM_HFXO}	Nominal output frequency	64		MHz
f_{XTAL_HFXO}	External crystal frequency	32		MHz
f_{TOL_HFXO}	Frequency tolerance requirement for 2.4 GHz proprietary radio applications		±60	ppm
f_{TOL_HFXO_BLE}	Frequency tolerance requirement, Bluetooth low energy applications		±40	ppm
C_{L_HFXO}	Load capacitance		12	pF
C_{0_HFXO}	Shunt capacitance		7	pF
R_{S_HFXO_7PF}	Equivalent series resistance C0 = 7 pF		60	ohm
R_{S_HFXO_5PF}	Equivalent series resistance C0 = 5 pF		60	ohm
R_{S_HFXO_3PF}	Equivalent series resistance C0 = 3 pF		100	ohm
P_{D_HFXO}	Drive level		100	uW
C_{PIN_HFXO}	Input capacitance XC1 and XC2	4		pF
t_{START_HFXO}	Startup time	0.36		ms

32.768 kHz RC oscillator (LFRC)

Symbol	Description	Typ.	Max.	Units
f_{NOM_LFRC}	Nominal frequency	32.768		kHz
f_{TOL_LFRC}	Frequency tolerance		±2	%
f_{TOL_CAL_LFRC}	Frequency tolerance for LFRC after calibration¹		±500	ppm
t_{START_LFRC}	Startup time for 32.768 kHz RC oscillator	600		us

32.768 kHz crystal oscillator (LFXO)

Symbol	Description	Min.	Typ.	Max.	Units
f_{NOM_LFXO}	Crystal frequency		32.768		kHz
f_{TOL_LFXO_BLE}	Frequency tolerance requirement for BLE stack			±250	ppm
f_{TOL_LFXO_ANT}	Frequency tolerance requirement for ANT stack			±50	ppm
C_{L_LFXO}	Load capacitance			12.5	pF
C_{0_LFXO}	Shunt capacitance			2	pF
R_{S_LFXO}	Equivalent series resistance			100	kohm
P_{D_LFXO}	Drive level			0.5	uW
C_pin	Input capacitance on XL1 and XL2 pads		4		pF
t_{START_LFXO}	Startup time for 32.768 kHz crystal oscillator		0.25		s
V_{AMP_IN_XO_LOW}	Peak to peak amplitude for external low swing clock. Input signal must not swing outside supply rails.	200		1000	mV

32.768 kHz synthesized from HFCLK (LFSYNT)

Symbol	Description	Typ.	Units
f_{NOM_LFSYNT}	Nominal frequency	32.768	kHz
f_{TOL_LFSYNT}	Frequency tolerance in addition to HFLCK tolerance²	8	ppm
t_{START_LFSYNT}	Startup time for synthesized 32.768 kHz	100	us

¹ Constant temperature within ±0.5 °C and calibration performed at least every 8 seconds, defined as 3 sigma

² Frequency tolerance will be derived from the HFCLK source clock plus the LFSYNT tolerance
