Ordering information

This chapter contains information on IC marking, ordering codes, and container sizes.

IC marking

The nRF52805 package is marked as shown in the following figure.

Figure 1. Package marking

The following figures show the box labels used for nRF52805.

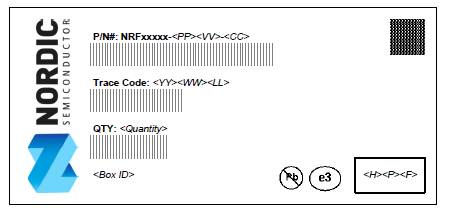

Figure 2. Inner box label

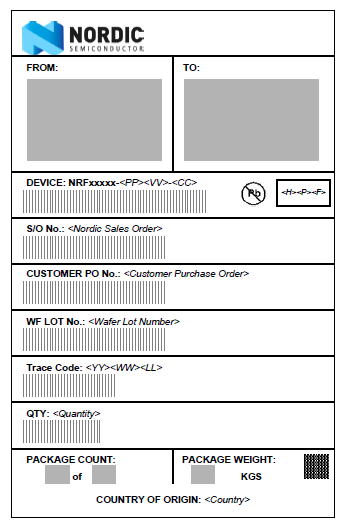

Figure 3. Outer box label

The following are the order codes and definitions for nRF52805.

Figure 4. Order code

Table 1. Abbreviations
Abbreviation	Definition and implemented codes
N52/nRF52	nRF52 Series product
805	Part code
<PP>	Package variant code
<VV>	Function variant code
<H><P><F>	Build code H - Hardware version code P - Production configuration code (production site, etc.) F - Firmware version code (only visible on shipping container label)
<YY><WW><LL>	Tracking code YY - Year code WW - Assembly week number LL - Wafer lot code
<CC>	Container code

Defined here are the nRF52805 code ranges and values.

Table 2. Package variant codes
<PP>	Package	Size (mm)	Pin/Ball count	Pitch (mm)
CA	WLCSP	2.482 x 2.464	28	0.4

Table 3. Function variant codes
<VV>	Flash (kB)	RAM (kB)	Access port protection
AA	192	24	Controlled by hardware
AA-B	192	24	Controlled by hardware and software

Table 4. Hardware version codes
<H>	Description
[A . . Z]	Hardware version/revision identifier (incremental)

Table 5. Production configuration codes
<P>	Description
[0 . . 9]	Production device identifier (incremental)
[A . . Z]	Engineering device identifier (incremental)

Table 6. Production version codes
<F>	Description
[A . . N, P . . Z]	Version of preprogrammed firmware
[0]	Delivered without preprogrammed firmware

Table 7. Year codes
<YY>	Description
[00 . . 99]	Production year: 2000 to 2099

Table 8. Week codes
<WW>	Description
[1 . . 52]	Week of production

Table 9. Lot codes
<LL>	Description
[AA . . ZZ]	Wafer production lot identifier

Defined here are the nRF52805 product options.

Table 11. nRF52805 order codes
Order code	MOQ¹	Comment
nRF52805-CAAA-R7	1500	Not recommended for new designs
nRF52805-CAAA-R	7000	Not recommended for new designs
nRF52805-CAAA-B-R7	1500
nRF52805-CAAA-B-R	7000

¹ Minimum Ordering Quantity
