Ordering information

This chapter contains information on IC marking, ordering codes, and container sizes.

IC marking

The nRF52810 package is marked as shown in the following figure.

Figure 1. Package marking

Box labels

The following figures show the box labels used for nRF52810.

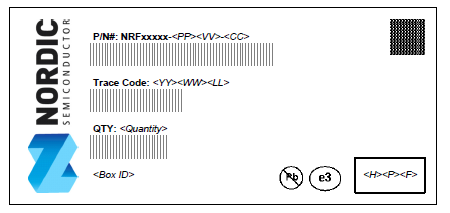

Figure 2. Inner box label
Inner box label

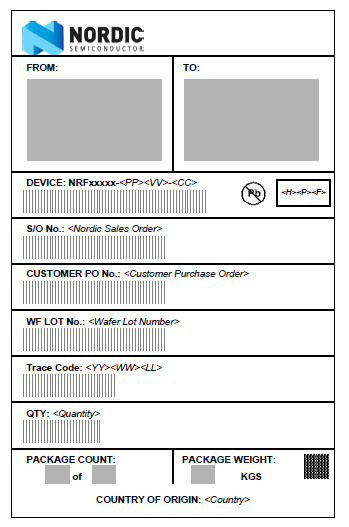

Figure 3. Outer box label
Outer box label

Order code

The following are the order codes and definitions for nRF52810.

Figure 4. Order code

Table 1. Abbreviations
AbbreviationDefinition and implemented codes
N52/nRF52nRF52 Series product
810Part code
<PP>Package variant code
<VV>Function variant code
<H><P><F>Build code

H - Hardware version code

P - Production configuration code (production site, etc.)

F - Firmware version code (only visible on shipping container label)

<YY><WW><LL>Tracking code

YY - Year code

WW - Assembly week number

LL - Wafer lot code

<CC>Container code

Code ranges and values

Defined here are the nRF52810 code ranges and values.

Table 2. Package variant codes
<PP>PackageSize (mm)Pin/Ball countPitch (mm)
QFQFN6 x 6480.4
QCQFN5 x 5320.5
CAWLCSP2.482 x 2.464330.4
Table 3. Function variant codes
<VV>Flash (kB)RAM (kB)Access port protection
AA19224Controlled by hardware
AA-E19224Controlled by hardware and software
Table 4. Hardware version codes
<H>Description
[A . . Z]Hardware version/revision identifier (incremental)
Table 5. Production configuration codes
<P>Description
[0 . . 9]Production device identifier (incremental)
[A . . Z]Engineering device identifier (incremental)
Table 6. Production version codes
<F>Description
[A . . N, P . . Z]Version of preprogrammed firmware
[0]Delivered without preprogrammed firmware
Table 7. Year codes
<YY>Description
[00 . . 99]Production year: 2000 to 2099
Table 8. Week codes
<WW>Description
[1 . . 52]Week of production
Table 9. Lot codes
<LL>Description
[AA . . ZZ]Wafer production lot identifier
Table 10. Container codes
<CC>Description
R77" Reel
R13" Reel
TTray

Product options

Defined here are the nRF52810 product options.

Table 11. nRF52810 order codes
Order codeMOQ1Comment
nRF52810-QFAA-R71000Not recommended for new designs
nRF52810-QFAA-R3000Not recommended for new designs
nRF52810-QFAA-T490Not recommended for new designs
nRF52810-QFAA-E-R71000
nRF52810-QFAA-E-R3000
nRF52810-QCAA-R71500Not recommended for new designs
nRF52810-QCAA-R4000Not recommended for new designs
nRF52810-QCAA-T490Not recommended for new designs
nRF52810-QCAA-E-R71500
nRF52810-QCAA-E-R4000
nRF52810-CAAA-R71500Not recommended for new designs
nRF52810-CAAA-R7000Not recommended for new designs
nRF52810-CAAA-E-R71500
nRF52810-CAAA-E-R7000
Table 12. Development tools order code
Order codeDescription
nRF52-DKnRF52832 development kit with tools to support nRF52810 development.
1 Minimum Ordering Quantity
